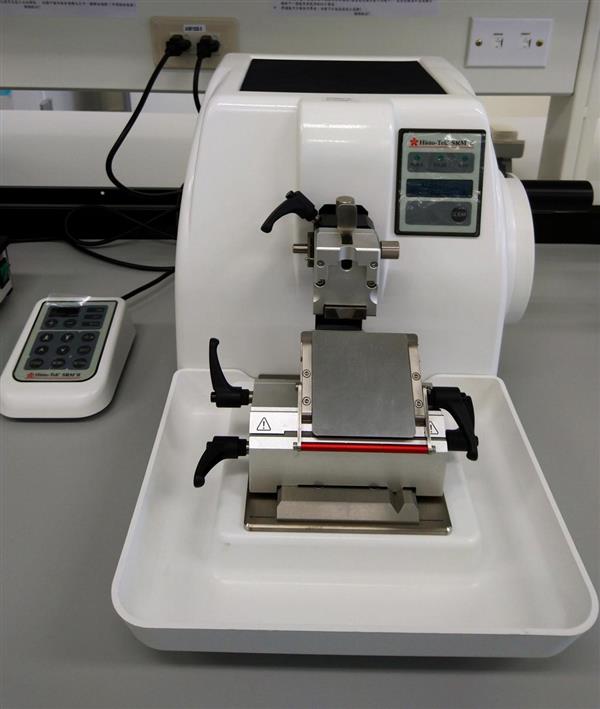

P4-石蠟組織切片機
Semi‐Motorized Microtome
Sakura Tissue-Tek® SRM™ Ⅱ
儀器描述
Histo-Tek® SRMTMⅡ是一台半自動旋轉式切片機，可電動調控樣品夾步進和回縮，優點在於精確切片和操作簡易。
主要特點
- 切片厚度範圍：0-600 μm
→0-2 µm (以0.5 µm增加)
→2-10 µm (以1 µm增加)
→10-20 µm (以2 µm增加)
→20-100 µm (以5 µm增加)
→100-600 µm (以50 µm增加) - 修片厚度範圍：0-600 μm
- 樣本前後移動距離：28 mm
- 樣本垂直移動距離：70 mm
- 樣本最大體積：50×30×40 mm (長x寬x高)
- 刀架基座移动距離：50 mm
- 樣本回縮範圍：5‐100 μm (以5 μm增加)
- 樣本固定角度：± 8°
- 電動移動速度：慢速300 μm/s、快速900 μm/s
使用說明
- 使用者需自行準備切片刀和玻片。
- 共儀提供組織飄浮水槽(AMOS AWB210)和玻片烘乾器(AMOS ASD220)。
放置地點
國家生技研究園區A棟5樓A522室
管理人員
技術專員：蕭志強
電子信箱：as0210241@gate.sinica.edu.tw
電話：02-7750-5500#1478
Description
The Histo-Tek® SRMTMⅡ is a semi-motorized rotary microtome. The specimen clamp is advanced and retracted by a stepping motor. This is excellent for precision sectioning and easy operation.
Main specifications
- Section thickness range: 0-600 μm
→0-2 µm (in 0.5 µm increments)
→2-10 μm (in 1 µm increments)
→10-20 μm (in 2 µm increments)
→20-100 μm (in 5 µm increments)
→100-600 μm (in 50 µm increments) - Trimming thickness range: 0-600 μm
- Object feed: 28 mm
- Vertical stroke: 70 mm
- Max. specimen size (W×D×H): 50×30×40 mm
- Repositioning of knife holder base (left‐right): 50 mm
- Specimen retraction: 5‐100 μm (in 5 μm increments)
- Specimen holder orientation: ± 8°
- Electric coarse feed: Slow 300 μm/s, Rapid 900 μm/s
Precautions for user
- User has to prepare disposable microtome blades and slides.
- Our core provides Water Bath (AMOS AWB210) and slide dryer (AMOS ASD220).
Facility location
National Biotechnology Research Park Building A, 5th Floor, room A522
Manager
Contact：蕭志強 Hsiao Anson
Email：as0210241@gate.sinica.edu.tw
Tel：02-7750-5500#1478
