生醫共同實驗儀器
Biomedical General Instrument

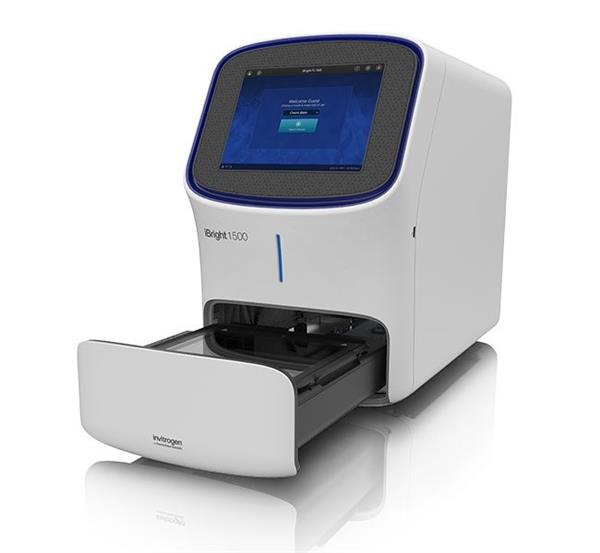

G9-全自動高靈敏高解析冷螢光生醫影像系統
iBright FL1500 Image System
iBright FL1500 Image System
1. 輔助儀器: 須搭配其他平台一起方可使用，不單獨預約使用
2. 若需使用高速/超高速離心機，請額外簽署此兩台機器的使用注意事項
3. 認證：如預約時段遲到15分鐘即取消認證時段。如預約下午2-3點認證，2:15分後即視為遲到。
下列儀器需2次認證才能開放自行操作
_1. 密閉式超音波核酸斷裂儀 _2. iD5_盤式分光光譜儀 _3. 高速離心機 _4. 超高速離心機
4. 儀器預約: 所有儀器最晚預約/取消時間為半小時前，下列除外
_1. 高速離心機 _2. 超高速離心機 (請在16小時前預約，24小時前取消)
(單位: 新台幣/每小時) (含稅價)
(Unit: NT dollars/Hr) (Tax-included)
|
服務項目/內容 Servie Item/Content |
學研單位 Academic Research Unit |
進駐廠商 On site Manufacturers
|
非進駐廠商 others in Taiwan |
|
|---|---|---|---|---|
| G1 |
細胞抹片離心機 SAKURA Cyto-Tek 2500 Cyto-centrifuge |
無收費 |
210 |
|
| G2 |
桌上型冷凍離心機 Eppendorf Centrifuge 5920 R |
210 |
||
| G3 |
離心式真空濃縮機 Eppendorf Concentrator Plus |
210 |
||
| G4 |
組織解離系統(活細胞組織均質機) gentleMACS |
210 | ||
| G5 |
探針式超音波細胞破碎機 Q700 Sonicator |
210 |
||
| G6 |
密閉式超音波核酸斷裂儀 Closed system ultrasonic cell disruptor |
315 |
||
| G7 |
核糖核酸定量儀 Thermo NanoDrop OneC Spectrophotometer |
315 |
||
| G9 |
全自動高靈敏高解析冷螢光生醫影像系統 iBright FL1500 Image System |
420 |
||
| G11 |
全光譜盤式分光儀 SpectraMax iD5 Microplate Reade |
105 | 210 | 315 |
| G12 |
高速離心機 Beckman Avanti J-26s Centrifuge |
無收費 |
315 |
|
| G13 |
超高速離心機 Beckman XPN-100 Ultracentrifuge |
525 |
||
| G15 | 免標定生物分子作用反應儀
GE Biacore T200 |
630 | 945 | 1260 |
| G16 | 圓二色光譜儀
AppliedPhotophysics Chirascan V100 |
630 | 945 | 1260 |
| G21 |
Azure照膠系統 Azure 300 |
無收費 | 420 | |
|
G22 |
多功能全光譜偵測儀 i3x SpectraMax i3x Multi-Mode Microplate Reader |
105 | 210 | 315 |
| G23 | 高效核轉染系統 4D-Nucleofector II | 105 | 210 | 315 |
＊儀器使用費不包含相關試劑與耗材
儀器特點
本機型可應用於Chemiluminescent blot、Fluorescent blot、Protein gel (colorimetric detection)、和Nucleic acid gel的成像與分析。機體為一體成型，機器螢幕為12.1英吋LCD多點觸控式螢幕，可直接點選螢幕，不需外接電腦即可操作。本機具有910萬畫數相機 cooled CCD且搭配自動曝光時間調整功能(Smart Exposure)自動計算最佳曝光時間，同時顯示此最佳曝光的預覽模擬圖像，並具備機械性載台，能夠在採集圖像之前自動將樣本與相機對齊，可避免在圖像分析過程中需要進行數位旋轉而修改圖像，導致強度值失真。儀器有直接連結網際網路功能，可將圖像檔案於雲端進行免費的儲存、分享及分析。
放置地點
國家生技研究園區A棟4樓A409室
管理人員
技術專員：朱泓璋
電子信箱：sugizo@gate.sinica.edu.tw
電話： 02-7750-5554
Description
Capture images and analyze data from western blots and gels efficiently and easily with the Invitrogen iBright FL1500 Imaging System. This high-performance instrument enhances the imaging experience through powerful hardware, advanced automated technologies, and an interface that is easy to use for researchers of all experience levels.The iBright FL1500 Imaging System supports the main imaging applications of fluorescent, chemiluminescent, and colorimetric western blots, in addition to fluorescent stained nucleic acid gels, fluorescent stained protein gels, colorimetric stained protein gels, and colorimetric membrane stains.
Features
- 9.1 MP cooled CCD camera: high sensitivity and dynamic range to help enable the detection of subtle differences in samples
- Five fluorescence channels: multiplex and capture up to four proteins in a single blot for more meaningful and representative experiments
- Smart Exposure technology: provides rapid determination of optimal exposure time to help minimize the need to repeat exposures to acquire the desired signal
- Simple interface: clear layout of functions and features combined with a 12.1-inch capacitive touchscreen for a smooth imaging experience
- Advanced automated features: automatic sample rotation, automatic zoom, and automatic focus help streamline image capture
- 22.5 x 18.0-cm field of view: large field of view for high-throughput imaging (image up to four mini or two midi blots at a time)
- Green LED-based transilluminator: effectively excite popular DNA dyes such as Invitrogen SYBR Green dyes with an alternative to UV-based transilluminators
- Flexible connectivity: export captured images via ethernet connection, Wi-Fi (with optional accessory), USB, or directly to Connect cloud-based platform
- Multiple image analysis options: perform densitometry, quantitation, and normalization directly using the on-instrument software, or for more in-depth analysis use iBright Analysis Software (available in both desktop and cloud-based versions)
Site
National Biotechnology Research Park Building A, 4th Floor, room A409
Manager
技術專員：朱泓璋
電子信箱：sugizo@gate.sinica.edu.tw
電話： 02-7750-5554
