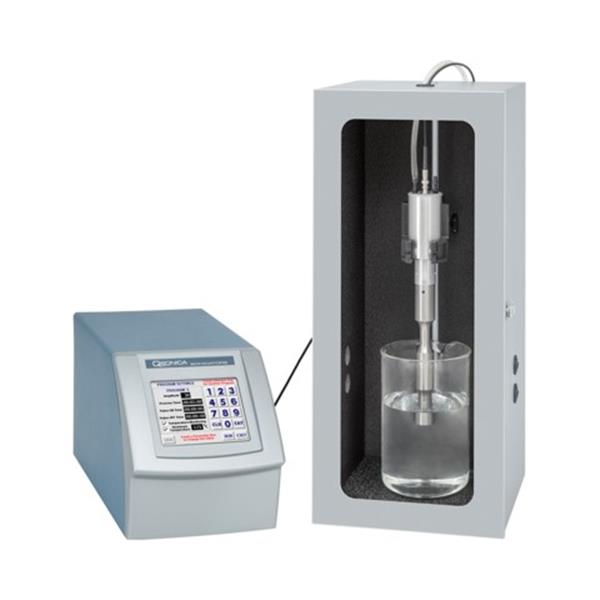

G5-探針式超音波細胞破碎機

Q700 Sonicator

Q700 Sonicator

1. 輔助儀器: 須搭配其他平台一起方可使用，不單獨預約使用

2. 若需使用高速/超高速離心機，請額外簽署此兩台機器的使用注意事項

3. 認證：如預約時段遲到15分鐘即取消認證時段。如預約下午2-3點認證，2:15分後即視為遲到。

        下列儀器需2次認證才能開放自行操作

        _1. 密閉式超音波核酸斷裂儀   _2.  iD5_盤式分光光譜儀   _3. 高速離心機  _4. 超高速離心機

4. 儀器預約: 所有儀器最晚預約/取消時間為半小時前，下列除外

          _1. 高速離心機  _2. 超高速離心機 (請在16小時前預約，24小時前取消)



(單位: 新台幣/每小時) (含稅價)

(Unit: NT dollars/Hr) (Tax-included)



服務項目/內容

Servie Item/Content

學研單位

Academic

Research

Unit

進駐廠商

On site

Manufacturers

　

非進駐廠商

others

in Taiwan
G1

細胞抹片離心機

SAKURA Cyto-Tek 2500 Cyto-centrifuge

無收費

210
G2

桌上型冷凍離心機

Eppendorf Centrifuge 5920 R

210
G3

離心式真空濃縮機

Eppendorf Concentrator Plus

210
G4

組織解離系統(活細胞組織均質機)

gentleMACS

 210
G5

探針式超音波細胞破碎機

Q700 Sonicator

210
G6

密閉式超音波核酸斷裂儀

Closed system ultrasonic cell disruptor

315
G7

核糖核酸定量儀

Thermo NanoDrop OneC Spectrophotometer

315
G9

全自動高靈敏高解析冷螢光生醫影像系統

iBright FL1500 Image System

420
G11

全光譜盤式分光儀

SpectraMax iD5 Microplate Reade

 105 210 315
G12

高速離心機

Beckman Avanti J-26s Centrifuge

 無收費

315
G13

超高速離心機

Beckman XPN-100 Ultracentrifuge

525
G15 免標定生物分子作用反應儀

GE Biacore T200

 630 945 1260
G16 圓二色光譜儀

AppliedPhotophysics Chirascan V100

 630 945 1260
G21

Azure照膠系統

Azure 300		 無收費 420

G22

多功能全光譜偵測儀 i3x

SpectraMax i3x Multi-Mode Microplate Reader

 105 210 315
           G23    高效核轉染系統 4D-Nucleofector II  105  210 315





＊儀器使用費不包含相關試劑與耗材

專人/專案諮詢 網路預約
探針式超音波細胞破碎機

儀器特色

Q700能完整提供1-100%振幅控制、可連續運行多個程序的超音波破碎機。具Load Monitoring自動迴饋偵測設計，可依不同樣品做固定強度輸出，保持破碎一致性。如果溫度達到上限，破碎機會自我關機以防止過熱。

依據處理樣品體積，可搭配微量1/16”Probe到1”大型Horn；使用4 Tip Horn, Dual horn一次可同時處理4組或2組樣品。若需要處理Microplate樣品，可使用Microplate cup horn，將整個Microplate放入做隔水間接處理，亦可搭配cup horn間接處理Microtube，防止交互污染。

儀器規格

  • 輸出功率：700 Watts
  • 輸出頻率：20 KHz
  • 輸出強度：1-100%
  • 程式控制時間：72小時
  • 程式控制性能：10組記憶，並可設定串聯
  • 脈衝時間設定：1秒到24小時
  • 處理量：0.2 mL–1000mL
  • 探頭與樣本建議容量如下：

  • Probe Type

    Tip Diameter

    Processing Volume Range

    Microtip

    1/16” (1.6 mm)

    0.2~2 ml

    Microtip

    1/8” (3 mm)

    0.5~15 ml

    Standard

    1/2” (12 mm)

    20~250 ml
  • 操作面板：觸控面板，可設定及顯示振幅及強度，具累積操作時間、顯示探針輸出功率(W)及累計輸出能量(J)功能以及過載保護設計
  • 尺寸(W x L x H)：203 x 387 x 216 mm

使用前須知

  • 使用前須知: 樣品請自備tip(及probe)

放置地點

國家生技研究園區A棟4樓A409室

管理人員



技術專員：朱泓璋

電子信箱：sugizo@gate.sinica.edu.tw

電話： 02-7750-5554

Description

The Q700 is the most technologically advanced sonicator available today. A state-of-the-art touch screen interface offers intuitive control and provides a user-friendly experience. The most important feature of a Sonicator is reproducibility. Improved internal circuitry guarantees more efficient operation, sample-to-sample consistency and most importantly, a reliable end result.



The Q700 is the only sonicator on the market that offers full amplitude control from 1-100%. This enables greater control of the probe’s intensity, helping to pinpoint the optimum settings for efficient sample processing. We have increased maximum power output to 700 watts making the system more durable and capable of handling even larger samples if necessary. Our new display, design improvements and added accessories make this the most sophisticated and versatile Sonicator available today.



Features

  • FULL AMPLITUDE CONTROL
    Full amplitude control Amplitude (intensity) is controlled from 1-100% giving a greater degree of resolution and the ability to pinpoint the amplitude needed to effectively process your sample.
  • PROGRAMMABILITY
    Parameters including processing times, pulse on/off and amplitude can be saved to memory and run by the touch of a button.
  • PULSE MODE
    Adjustable pulse On and Off times to reduce the heat gain in temperature sensitive samples.
  • TEMPERATURE MONITORING
    An optional temperature probe is available for those customers who wish to monitor the temperature of their sample. If the temperature limit is reached, sonication shuts down to prevent overheating.
  • ROHS COMPLIANT
    All Qsonica equipment is built lead free.
  • RUN MULTIPLE PROGRAMS IN SEQUENCE
    Multiple programs can be run in sequence. For example, the unit can be programmed to sonicate at 50% amplitude for 5 minutes, shut off for 2 minutes and re-start at 25% amplitude for 10 minutes. Up to 5 programs can be run in succession.
  • TOTAL ENERGY OUTPUT DISPLAY
    Energy delivered to the probe is displayed in both Watts and Joules.
  • AUTO TUNING
    The Sonicator digitally tracks frequency changes in the converter / tip assembly caused by load and temperature changes and maintains electrical efficiency at all times. Manual tuning is unnecessary.
  • OVERLOAD PROTECTION
    The unit is equipped with fault detection circuitry to shut down sonication in the event that a fault occurs.
  • TOUCH SCREEN CONTROL
    A large, color LCD screen clearly displays all operating parameters and options. Intuitively and quickly access any of the Sonicator’s functions with a simple touch.

Specification

  • Power Rating：700 Watts
  • Frequency：20 kHz
  • Programmability：10 Memories Plus Sequencing
  • Programmable Timer：72 Hours
  • Adjustable Pulse On/Off：1 Second to 24 Hours
  • Dimensions：8" W x 15.25" L x 8.5" H
  • Voltage：110V, 50/60Hz

Site

National Biotechnology Research Park Building A, 4th Floor, room A408

Manager

技術專員：朱泓璋

電子信箱：sugizo@gate.sinica.edu.tw

電話： 02-7750-5554
