生醫共同實驗儀器
Biomedical General Instrument

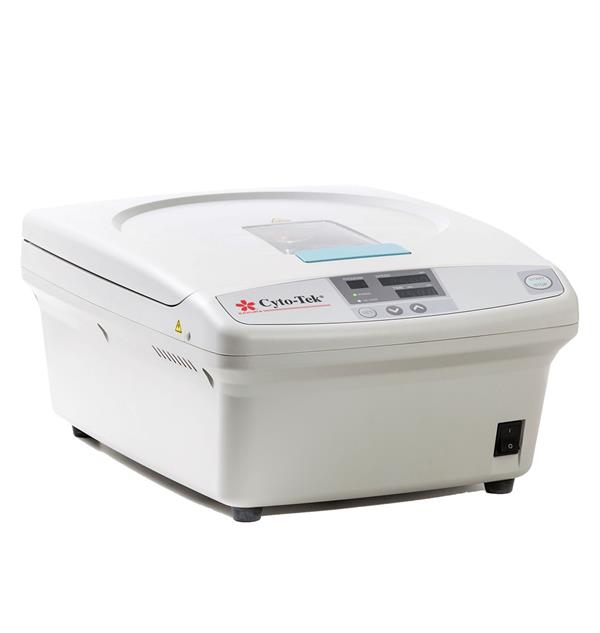

G1-細胞抹片離心機
SAKURA Cyto-Tek 2500 Cyto-centrifuge
SAKURA Cyto-Tek 2500 Cyto-centrifuge
1. 輔助儀器: 須搭配其他平台一起方可使用，不單獨預約使用
2. 若需使用高速/超高速離心機，請額外簽署此兩台機器的使用注意事項
3. 認證：如預約時段遲到15分鐘即取消認證時段。如預約下午2-3點認證，2:15分後即視為遲到。
下列儀器需2次認證才能開放自行操作
_1. 密閉式超音波核酸斷裂儀 _2. iD5_盤式分光光譜儀 _3. 高速離心機 _4. 超高速離心機
4. 儀器預約: 所有儀器最晚預約/取消時間為半小時前，下列除外
_1. 高速離心機 _2. 超高速離心機 (請在16小時前預約，24小時前取消)
(單位: 新台幣/每小時) (含稅價)
(Unit: NT dollars/Hr) (Tax-included)
|
服務項目/內容 Servie Item/Content |
學研單位 Academic Research Unit |
進駐廠商 On site Manufacturers
|
非進駐廠商 others in Taiwan |
|
|---|---|---|---|---|
| G1 |
細胞抹片離心機 SAKURA Cyto-Tek 2500 Cyto-centrifuge |
無收費 |
210 |
|
| G2 |
桌上型冷凍離心機 Eppendorf Centrifuge 5920 R |
210 |
||
| G3 |
離心式真空濃縮機 Eppendorf Concentrator Plus |
210 |
||
| G4 |
組織解離系統(活細胞組織均質機) gentleMACS |
210 | ||
| G5 |
探針式超音波細胞破碎機 Q700 Sonicator |
210 |
||
| G6 |
密閉式超音波核酸斷裂儀 Closed system ultrasonic cell disruptor |
315 |
||
| G7 |
核糖核酸定量儀 Thermo NanoDrop OneC Spectrophotometer |
315 |
||
| G9 |
全自動高靈敏高解析冷螢光生醫影像系統 iBright FL1500 Image System |
420 |
||
| G11 |
全光譜盤式分光儀 SpectraMax iD5 Microplate Reade |
105 | 210 | 315 |
| G12 |
高速離心機 Beckman Avanti J-26s Centrifuge |
無收費 |
315 |
|
| G13 |
超高速離心機 Beckman XPN-100 Ultracentrifuge |
525 |
||
| G15 | 免標定生物分子作用反應儀
GE Biacore T200 |
630 | 945 | 1260 |
| G16 | 圓二色光譜儀
AppliedPhotophysics Chirascan V100 |
630 | 945 | 1260 |
| G21 |
Azure照膠系統 Azure 300 |
無收費 | 420 | |
|
G22 |
多功能全光譜偵測儀 i3x SpectraMax i3x Multi-Mode Microplate Reader |
105 | 210 | 315 |
| G23 | 高效核轉染系統 4D-Nucleofector II | 105 | 210 | 315 |
＊儀器使用費不包含相關試劑與耗材
產品特色
- 一次處理最大12個檢體
產品規格
- 轉數設定：200-2,500rpm, 數字式顯示,10rpm為單位設定
- 定時：1秒-99分59秒；以1秒為單位設定
- 電源：AC115V 60HZ
- 尺寸：約37.5(W) x 49.0(D) x 22.5(H) CM
- 重量：11.7kg(包含Guard Bowl)
放置地點
國家生技研究園區A棟4樓A409室
管理人員
技術專員：朱泓璋
電子信箱：sugizo@gate.sinica.edu.tw
電話： 02-7750-5554
Description
The Cyto-Tek® 2500 Cytocentrifuge provides optimal cell recovery and advanced preservation of cellular structure in non-gynecological monolayer slide preparation. The 2500 was designed with enhanced features focusing on user safety, including the introduction of a new sealable rotor housing with lid which significantly reduces aerosol exposure. The housing is completely removable and transportable, providing added convenience. Technicians now have the ability to load and unload specimens in vented areas away from the centrifuge, under a fume hood. The Cyto-Tek 2500 Cytocentrifuge has a sleek and modern design and provides the superior clinical performance users have come to expect from Sakura’s Cyto-Tek Cytocentrifuges.
Specifications
- Dimensions：(H x W x D) 225 x 375 x 490 mm
- Height with lid open：595 mm
- Weight：11.7 kg
- Process capacity：Up to 12 disposable chambers per process
- Speed：Adjustable from 200 to 2.500 rpm (10 rpm increments)
- Programmable times：1 second to 99 minutes 59 seconds (adjustable in 1-minute increments
- Chamber sizes：1-, 6-, and 12-mL disposable chambers
- Number of programs：30 programs
Site
National Biotechnology Research Park Building A, 4th Floor, room A409
Manager
技術專員：朱泓璋
電子信箱：sugizo@gate.sinica.edu.tw
電話： 02-7750-5554
