生醫共同實驗儀器
Biomedical General Instrument

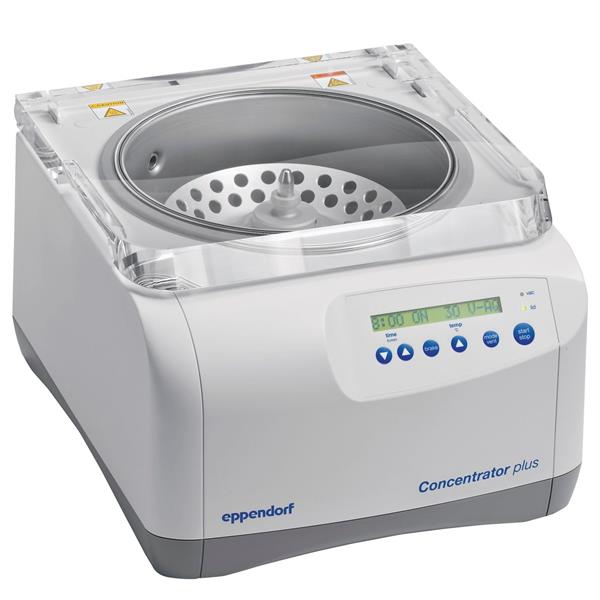

G3-離心式真空濃縮機
Concentrator Plus
1. 輔助儀器: 須搭配其他平台一起方可使用，不單獨預約使用
2. 若需使用高速/超高速離心機，請額外簽署此兩台機器的使用注意事項
3. 認證：如預約時段遲到15分鐘即取消認證時段。如預約下午2-3點認證，2:15分後即視為遲到。
下列儀器需2次認證才能開放自行操作
_1. 密閉式超音波核酸斷裂儀 _2. iD5_盤式分光光譜儀 _3. 高速離心機 _4. 超高速離心機
4. 儀器預約: 所有儀器最晚預約/取消時間為半小時前，下列除外
_1. 高速離心機 _2. 超高速離心機 (請在16小時前預約，24小時前取消)
(單位: 新台幣/每小時) (含稅價)
(Unit: NT dollars/Hr) (Tax-included)
|
服務項目/內容 Servie Item/Content |
學研單位 Academic Research Unit |
進駐廠商 On site Manufacturers
|
非進駐廠商 others in Taiwan |
|
|---|---|---|---|---|
| G1 |
細胞抹片離心機 SAKURA Cyto-Tek 2500 Cyto-centrifuge |
無收費 |
210 |
|
| G2 |
桌上型冷凍離心機 Eppendorf Centrifuge 5920 R |
210 |
||
| G3 |
離心式真空濃縮機 Eppendorf Concentrator Plus |
210 |
||
| G4 |
組織解離系統(活細胞組織均質機) gentleMACS |
210 | ||
| G5 |
探針式超音波細胞破碎機 Q700 Sonicator |
210 |
||
| G6 |
密閉式超音波核酸斷裂儀 Closed system ultrasonic cell disruptor |
315 |
||
| G7 |
核糖核酸定量儀 Thermo NanoDrop OneC Spectrophotometer |
315 |
||
| G9 |
全自動高靈敏高解析冷螢光生醫影像系統 iBright FL1500 Image System |
420 |
||
| G11 |
全光譜盤式分光儀 SpectraMax iD5 Microplate Reade |
105 | 210 | 315 |
| G12 |
高速離心機 Beckman Avanti J-26s Centrifuge |
無收費 |
315 |
|
| G13 |
超高速離心機 Beckman XPN-100 Ultracentrifuge |
525 |
||
| G15 | 免標定生物分子作用反應儀
GE Biacore T200 |
630 | 945 | 1260 |
| G16 | 圓二色光譜儀
AppliedPhotophysics Chirascan V100 |
630 | 945 | 1260 |
| G21 |
Azure照膠系統 Azure 300 |
無收費 | 420 | |
|
G22 |
多功能全光譜偵測儀 i3x SpectraMax i3x Multi-Mode Microplate Reader |
105 | 210 | 315 |
| G23 | 高效核轉染系統 4D-Nucleofector II | 105 | 210 | 315 |
＊儀器使用費不包含相關試劑與耗材
儀器特色
- 耐化學腐蝕，免維護的 PTFE 塗層隔膜泵，無需添加幫浦油。
- 占地面積小，節約寶貴實驗台空間。
- 運行非常安靜
- 免維護感應驅動和耐化學腐蝕的不銹鋼加熱腔體，運行安全。
- 可與市場上通用的Cold Trap品牌連接使用。
- 塗層蓋子耐化學腐蝕性更強。
儀器規格
- 最大容量：48支 x 1.5/2.0 ml
- 計時器：1分鐘~99小時59分鐘或連續。
- 溫度範圍：室溫、30℃、45℃、60℃。
- 轉速範圍：定速1,400 rpm。
- 連接外部設備與真空幫浦接口：否。
- 真空度：20 hPa (20 mbar)。
- 最大耗能：350 W。
- 外觀尺寸：330 x 580 x 290 mm (W x D x H)。
- 重量：31.5 kg。
使用前須知
禁用有機溶劑進行真空濃縮，酒精(Ethanol)除外
放置地點
國家生技研究園區A棟4樓A409室
管理人員
技術專員：朱泓璋
電子信箱：sugizo@gate.sinica.edu.tw
電話： 02-7750-5554
Description
The new Concentrator Plus features an LCD display, more capacity, a new design, and user friendly control panel with clearly labelled function keys. Available in two configurations: - Complete system with an integrated service free diaphragm pump - Basic concentrator for connecting to an existing vacuum. Power to external vacuum pumps can be automatically controlled by using the AC receptacle in the rear of the concentrator. The concentrator's heating technology optimises the evaporation process. No matter which configuration you choose, you're assured of quick and efficient yet gentle vacuum concentration of your samples (e.g., DNA/RNA, proteins). The complete system includes a vapour condenser that purifies the exhaust air by up to 85%. This serves as protection against unpleasant vapours. At the same time, an automatic condensate drain extends the service life of all components that come into contact with the vapours.
- Timer selection between 1min and 9:59hr
- Brake function
- Temperature preselection: room temperature, 30°C, 45°C, and 60°C
- Mode/vent function: Choose between three solvent modes
- Start/Stop of concentration process
- Narrow 330mm width saves valuable bench space
- Chemical resistant PTFE diaphragm pump
- Chemical resistant stainless steel chamber
- Extremely quiet operation, even with pump turned on
- Choice of three application modes (aqueous, alcohol, or high vapour pressure) to correspond with sample solvent reduction of processing time up to 20%
- Choice of four heating levels (room temperature, 30°C, 45°C, 60°C) allows safe and efficient concentration of various samples
- Centrifugation and desiccator function
- Imbalance stop The new Concentrator Plus quickly and efficiently concentrates DNA/RNA, nucleotides, proteins and other samples.
-
Specifications
144 × 0.5mL tubes, 96 × 1.5/2mL, 6 × 50mL conical tubes, 2 × microplate/PCR plates 230V Concentrator Plus with Pump and GB Plug Max. 350w GB -
20 hPa (20 mbar) 5 to 60Hz 58 × 33 × 29cm 1,400rpm (max. RCF 250 × g) 31.5kg
Site
National Biotechnology Research Park Building A, 4th Floor, room A409
Manager
技術專員：朱泓璋
電子信箱：sugizo@gate.sinica.edu.tw
電話： 02-7750-5554
